Sight Marks

Overview

This section will guide you through the process of creating sight marks for your bow. We'll also discuss the various options at your disposal and offer troubleshooting tips for common issues.

Sight marks are predominately used in target archery, so if you're a bow hunter without a target sight with a built in scale / clicks, this section may not be for you.

Prerequisites

Before creating sight marks, you'll need to have completed the following:

Creating Sight Marks

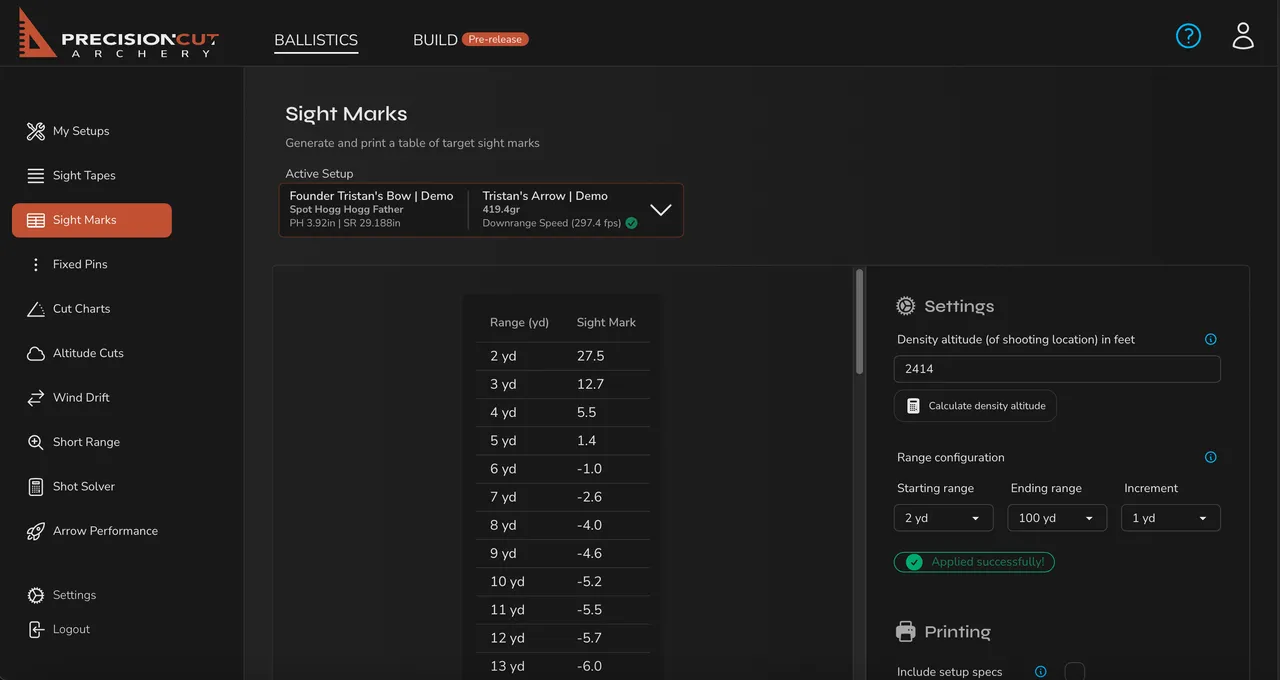

Start by navigating to the Sight Marks page within the application.

You can modify the Active Setup at the top of the page.

Note

In order for sight marks to be computed, the setup's sight must be a target sight with a built-in scale / clicks, and marks must have been supplied during the sight-in process.

If these requirements are not met, the sight marks on this page will be computed in inches.

Target Sight Mark Formatting

Marks should be supplied in the format of <turns>.<clicks>. Most commonly, turns is determined from the sight scale on the side of the sight, and clicks are determined from the micro-adjust knob.

Note

Some sight scales, such as Shibuya's, are labeled 0, 1,...,9 instead of 0, 10,...,90. In this case, to determine the turns of a sight mark, simply multiply the reading from the scale by 10. For example, 8.4 on the scale with a click reading of 0.45 on the elevation knob becomes 84.45 when inputted to the program.

10 Click Sights

Full rotation of the click nob: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 0.0

20 Click Sights (Except CBE)

Full rotation of the click nob: 0.05, 0.10, 0.15, 0.20, 0.25, 0.30,..., 0.70, 0.75, 0.80, 0.85, 0.90, 0.95, 0.00

20 Click CBE Sights (Axis and Vertex Elevate)

Full rotation of the click nob: 0.01, 0.02, 0.03, 0.04, 0.05,..., 0.14, 0.15, 0.16, 0.17, 0.18, 0.19, 0.00

30 Click Sights (CBE Vertex Target)

Full rotation of the click nob: 0.01, 0.02, 0.03, 0.04, 0.05,..., 0.29, 0.00

Spot Hogg

Full rotation of the click nob: 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.0

B3 Exact Q2 Target

Full rotation of the click nob: 0.01, 0.02, 0.03, 0.04, 0.05, 0.06,..., 0.27, 0.28, 0.29, 0.30, 0.00

B3 Exact Q2 3D

Full rotation of the click nob: 0.01, 0.02, 0.03, 0.04, 0.05, 0.06,..., 0.45, 0.46, 0.47, 0.48, 0.49, 0.00

Note that the click labeled X.50 on the B3 Exact Q2 3D should be entered in the program as X.00.

Configuring the Marks

Density Altitude

This is the density altitude the sight marks will be computed for. This is useful if traveling and you'd like to compute the sight marks for the destination's density altitude.

Read more about density altitude here.

Range Configuration

  • Starting range - The closest range on the sight marks table.

  • Ending range - The farthest range on the sight marks table.

  • Increment - The increment between each range on the sight marks table.

Printing the Marks

Once configured to your liking, you can download the sight marks as a printable PDF document.
